Low Pressure Sampling Extremely High Resolution Laser
Category:
Gas Analyzers
Low Pressure Sampling Extremely High Resolution Laser

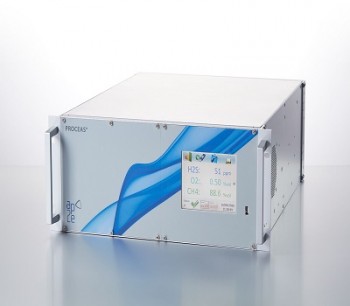

The ProCeas® GENERAL is a complete pre-calibrated multi-component (CH4 , CO, CO2, H2, H2O, HCI, HCN, HF, N2O, NH3, O2) laser infrared spectrometer for gases analysis.
| ANALYTICAL SPÉCIFICATIONS | ||||
|---|---|---|---|---|
| Gas | Rangea | LODb | ||
| min | max | min | max | |
| Formaldéhyde | 10ppm | 1% | 2ppb | 10ppm |
| H2S | 50ppm | 10% | 2ppb | 100ppm |
| CH4 | 50ppm | 100% | 1ppb | 1000ppm |
| CO | 100ppm | 100% | 1ppb | 1000ppm |
| CO2 | 1% vol. | 100% | 2ppm | 1000ppm |
| H2 | 5% vol. | 100% | 3ppm | 1000ppm |
| H2O | 1000ppm | 100% | 5ppb | 1000ppm |
| HCI | 5ppm | 100% | 1ppb | 1000ppm |
| HCN | 10ppm | 100% | 1ppb | 1000ppm |
| HF | 10ppm | 1% | 1ppb | 1000ppm |
| N2O | 50ppm | 100% | 2ppb | 1000ppm |
| NH3 | 50ppm | 100% | 1ppb | 1000ppm |
| O2 | 1000ppm | 100% | 100ppb | 1000ppm |
| NO | 5000ppm | 100% | 100ppb | 1000ppm |
| NO2 | 100ppm | 100% | 10ppb | 1000ppm |
A adjustable range on request
B limi
